Available in porcelain color, matte black, brass, nickel, or copper plated.Included with each unit is a fire screen, 2 sections of pipe 9" x 24"and 1- 9" x 18" to 8" slip section in matching color. Large viewing opening and 28 inch interior diameter. Refractory brick lined to give close clearance to combustibles, 8 inches. See minimum clearances for more details.
  • Large viewing opening and 28 inch interior diameter.
  • Refractory brick lined to give close clearance to combustibles.

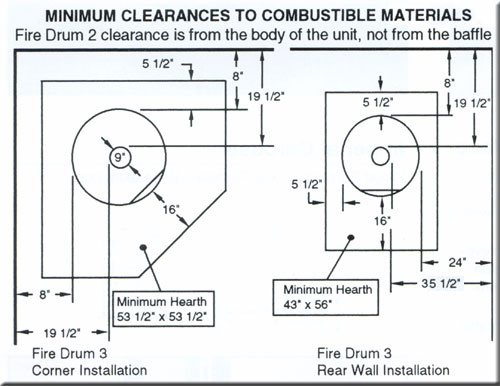

  • See minimum clearances for more details.
  • Do not connect Fire Drum 3 to 8" chimney when using 90 degree elbow in a single story installation.
  • Grate is recommended.

    Patent #D25096
    Ship weight 500 Ibs

COMPLETE FIRE DRUM 3
INSTALLATION INSTRUCTIONS IN ADOBE PDF FORMAT

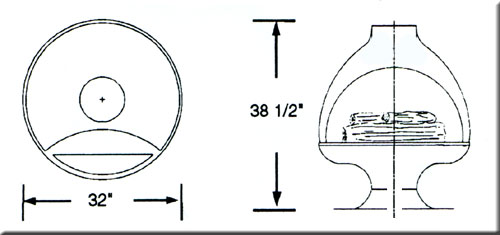

fd3dim.jpg - 40126 Bytes

fd3dim2.jpg - 19269 Bytes

logosm.jpg - 4956 Bytes
368 Yolanda Avenue-Santa Rosa,Ca.95404
(707)523-7755 (800)535-8955
Fax:(707)571-8036
